The IP00C341 is an enhanced multi-functional image processing LSI with de-interlacer, scaler, warping and edge-blending circuitry.

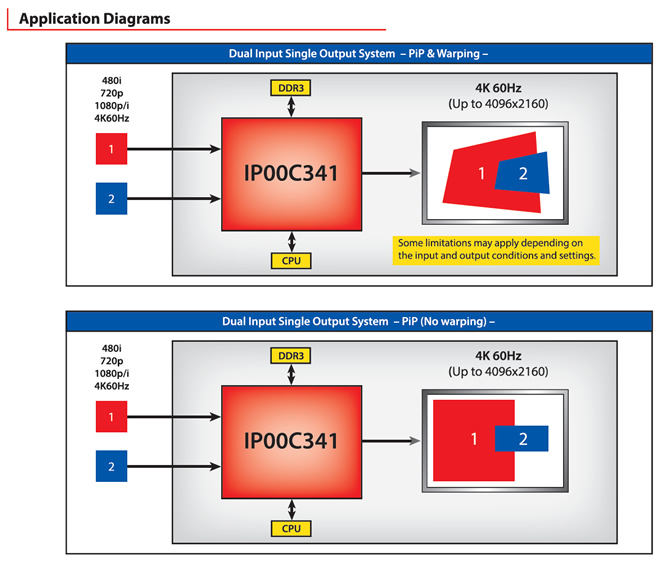

Up to 4K60Hz dual input images are fully independently enlarged, shrunk and de-interlaced with PiP/PoP output images.

It features an embedded warp table generator that implements real-time image processing for H and V keystone correction and pin-cushion correction.

In addition, high-performance functions such as PQ and HLG HDR systems(10-bit) and 3DLUT for color management are also integrated.

The IP00C341 is an ideal device for a wide range of high performance video applications like projectors, laser TVs, and monitors.

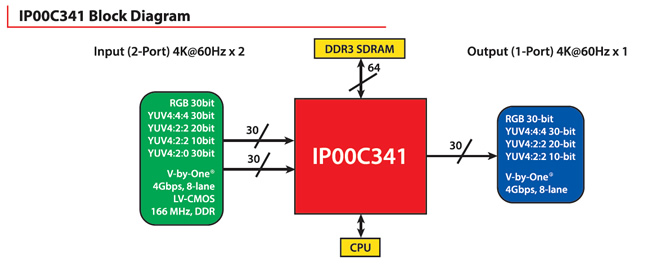

Input（4K60Hz, 2out of 4-port）

• RGB 30bit / YUV4:4:4 30bit / YUV4:2:0 30bit / YUV4:2:2 20bit / YUV4:2:2 10bit (BT656)
  @V-by-One®HS 4Gbps, 8 lane 2-port
  @LV-CMOS 166MHz supporting dual(EVEN/ODD) and DDR inputs 4-port

• 4K60Hz input up to 2-port

Output(4K60Hz, 1-port)

• RGB 30bit / YUV4:4:4 30bit / YUV4:2:2 20bit / YUV4:2:2 10bit(BT656)
  @V-by-One®HS 4Gbps, 8-lane

External Memory

• DDR3-SDRAM　64bit PC1600 (4G/2G/1G x16) x4

Input/Output Sync/Asynchronous Behavior

• Frame rate conversion

• Tearing protection

• External force synchronization

• Genlock

De-Interlacer

• Motion adaptive filter based on Y, U, V, YUV 4:2:2

• All major cadences supported

• Low latency processing

Scaler

• Zoom/shrink 6-symbol programable FIR filter(10bit/pixel)

• Embedded ROM(64set)

Noise Reduction

• 3DNR(H,V,Temporal)

• MPEG-NR(Mosquito/Block)

• Chroma error filter

Bit Map OSD

• 256 colors/High color OSD(64K colors)

• Embedded font engine(65536 words)

• Blinking and semi-transparent(4 colors OSD)

• 90-degree rotation, OSD scroll

• Serial flash to bitmap

Image Quality Control

• Color management(full color gamma)

• 3DLUT(4K60Hz 2-input supported)

• Uniformity correction

• Bias/Gain/Gamma correction

• H edge enhancement(9symbol), V edge enhancement(5 to 9symbol)

• Dithering for 10 or 8 bit output

Distortion Correction Mode

• RGB common distortion correction mode

Distortion Correction Method

• Coordinate correction look up table

• Embedded warp table generator (keystone correction and pin cushion correction)

• Load from external CPU or external serial flash

Distortion Correction Amount

• Up to 45 degrees(horizontal/vertical)

Image Correction

• Edge-blending

• Mirror/flip image

• 90 degree rotation

• Overlay, alpha blending, color key blending

CPU Interface

• 8-bit parallel/4-wire serial

xvYCC/Bt.2020

• Fully supported

HDR Standard

• SMPTE ST2084(PQ) and HLG both methods supported(RGB 10-bit each)

Power Supply

• 3.3V/1.5V/1.1V

Package

• 684-pin BGA(0.8mm pitch), 27mmx27mm
