The IP00C734A has 4 independent image processing channels with 4 input ports and 4 output ports at 166 MHz each.
A single IP00C734A can drive a 4K60Hz format.
Also, the IP00C734A incorporates 4 independent de-interlacers along with scaler and image quality control such as gamma correction and uniformity correction in order to meet the requirements for higher image quality.

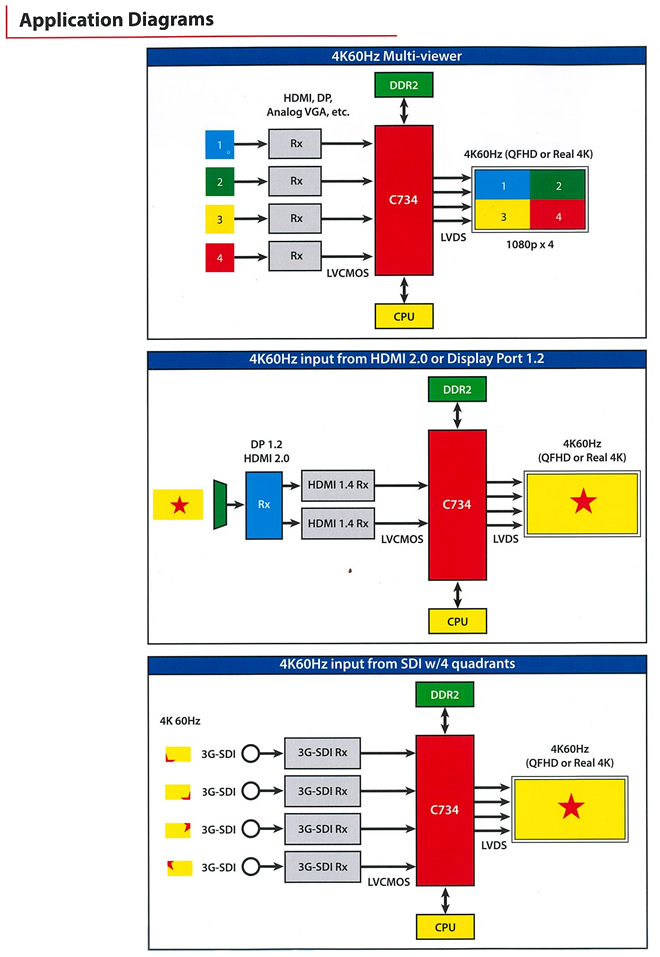

With its LVDS output, the IP00C734A is an ideal single-chip solution for a 4K monitor.
Input(4-port)
-
30-bit RGB/YUV4:4:4, 20-bit YUV4:2:2, 10-bit YUV4:2:2/YUV4:2:0 @166MHz LVCMOS
-
Dual (EVEN/ODD) Input/DDR Input
Output(4-port)
-
30-bit RGB/YUV4:4:4, 20-bit YUV4:2:2, 10-bit YUV4:2:2 @83MHz LVDS x2
-
Dual (EVEN/ODD) Output
Input & Output Image size(Max)
-
Horizontal sync signal 16,384 pixels
-
Horizontal image active area 2,176 pixels
External Memory
-
DDR2-SDRAM 64bit PC800(2G/1G/512Mbitx16)x4
External／Internal Sync
-
Output sync signal corresponds to External/Internal Sync
-
4-ch Independent sync mode is available to select.
Input/Output sync／Asynchronous Behavior
-
Frame rate conversion/Tearing portection
-
External force synchronization
De-interlacer
Motion adaptive de-interlacer
High performance motion detection filter (Y)
YUV4:2:2
Multi-cadence
2:3/2:2 pull-down
Scaler
Zoom/Shrink 6 symbol FIR filter(10bit/pixel)
Coefficient ROM (64sets)
Independent vertical/horizontal magnification & panoramic view
Horizontal zoom/shrink & Vertical zoon/shrink cannot operate at the same time
4-ch input image at zoom available add overlap
Image Manipulation
Mirror/flip
90-degree rotation
4-ch overlay, Alpha blending
Chroma key blending
Image Quality Control
3x3 color conversion matrix
Uniformity correction (by region & per pixel)
Bias/Gain/Gamma correction
Horizontal edge enhancement (9 symbols)
Error diffusion (14→12, 12→10, 10→8)
xvYCC/BT.2020
fully supported
Noise Reduction
Temporal NR
Bitmap OSD
256colors
Embedded font engine(65536 words)
Blinking & Semi-transparent (4-colors OSD)
90-degree rotation
OSD scroll
Independent for each 4-ch output port
Bitmap transfer from Serial flash
CPU Interface
8-bit parallel/4-wire serial
Power Supply
3.3V/1.8V/1.2V
Package
768-pin BGA(0.8mm pitch), 27mmx27mm

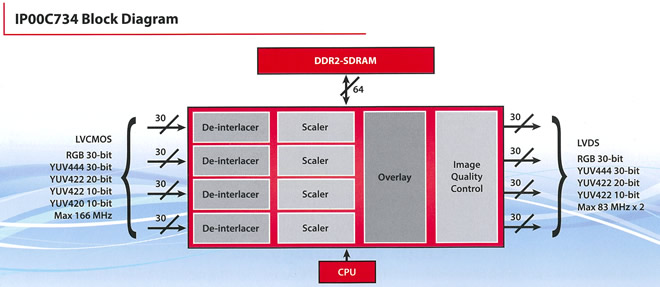

IP00C734A Block Diagram
IP00C734A demo movie
The following demo movies are available.
If you would like to watch them, please contact info@i-chips.co.jp
Image transition demo movie
This is a demo video that realizes the image transition function using the image blending algorithm.
