The IP00C813A is a dual-input/dual-output de-interlacer and scaler on a single device.
It features a built-in video decoder, ARM9 CPU, LVDS output, along with Ethernet and USB interfaces.
Its inputs and outputs can be any interlaced format, SD or HD, or any progressive format, up to 1080P/WUXGA/2K1K.

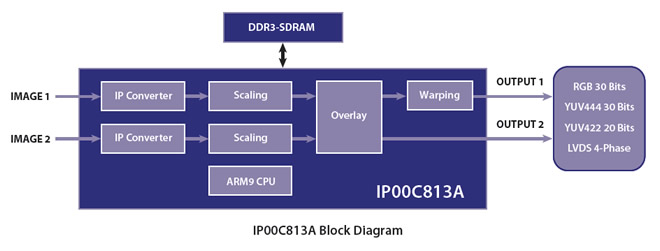

The IP00C813A features 2 independent de-interlacer/scaler blocks, with full 10-bit internal processing.
The IP00C813A can be configured in several ways.
In the single-output mode, it can generate Picture-in-Picture, Picture-by-Picture output.
In the dual-output mode, it can generate separate outputs at any resolution.

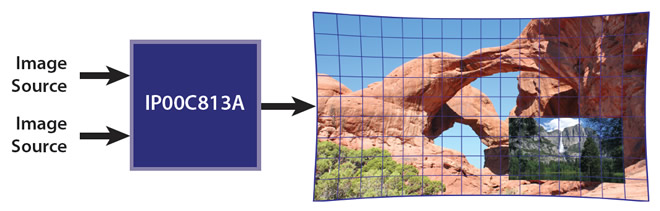

First, it can correct for geometry distortion based on a user-programmable “warp table” loaded in an external CPU or Flash memory.
This geometry correction can be applied to the entire image with a resolution as small as 16x16 pixels.
It supports image rotation up to +/- 25 degrees, as well as 90-degree rotation and mirror image.
Second, the IP00C813A can correct for color distortion in the image.
This is accomplished by a powerful brightness and contrast adjustment system that is independently programmable for each 64x64 pixels region in the image.
The IP00C813A also features a state-of-the-art edge blending function to allow for the seamless tiling of multiple images.
Input
-
30-bit RGB/30-bit YUV4:4:4/20-bit YUV4:2:2/10-bit YUV4:2:2@166MHz
-
60-bit RGB/60-bit YUV4:4:4/40-bit YUV4:2:2@166MHz(Parallel)
-
Analog: CVBS/S-Video
-
2176 pixels of active video
Output
-
30-bit RGB/30-bit YUV4:4:4/20-bit YUV4:2:2@166MHz
-
Compatible with FPD link(2x2 only, no CMOS)@135MHz/each
-
2176 pixels of active video
De-Interlacing
-
3D/MPEG/mosquito/block noise reduction
-
2:2, 2:3 and multi cadence detection
-
Chroma bug canceller
Scaling
-
6symbol filter (horizontal only-8symbol) with FIR filter
-
Independent H and V scaling ratios (aspect ratio correction)
-
Coefficient filter ROM embedded (64set)
-
90degree image rotation (image and OSD)
-
Vertical keystone correction
Video Decoder
-
NTSC-M, JPN, 4.43 PAL-B, D, G, H, I, CombinationN, 60, &SECAM
-
VBI(Closed caption/CGMS/WSS)data extraction
-
Clamp Pulse output, raw data output
PiP & PoP Functions
-
Two(2) fully independent video inputs
-
Frame rate conversion with frame tear protection
Bitmap OSD
-
256colors/High color OSD (RGB565)compatible
-
Embedded font engine(65536words)
-
Support for blinking and semi-transparent(4color)OSD
Embedded CPU
ARM926EJ-S core with 16KB instruction, 16KB data
Work RAM(64KB)
Ethernet, USB2.0(host, function)
DMAC(2ch)/UART(4ch)/I2C(master/slave)
Timer(4ch)/Interruption control/IR remote control/RTC
10-bit ADC(8ch)/10-bit DAC(6ch)
Warping
Coordinated look-up table
Correction up to a 25 degree angle both horizontal and vertical
Rotation angle up to 25 degrees
Edge-blending
External CPU Interface
8-bit parallel, 4-line serial(with external CPU)
External connection to Flash/SRAM/SDRAM
Address:23-bit/Data:16-bit
External interruption input(4 line)
Image Quality Control
12-bit gamma correction with interpolation (up to 7 LUTs available)
12-bit color gamma correction table x2(2, 7, or 31set)x2
H and V edge enhancement function (9 symbols)
Bias x3, Gain x2, CSC equipped for RGB <-> YUV
Color management function
Fully compatible with xvYCC
Uniformity correction
Input image detection of APL, Histogram, Min/Max, edge strength/position measurement, etc.
External Memory
Memory-bus 64-bit 800MHz
DDR3-SDRAM PC800(1G/512M/bit x16)x4
Power Supply
3.3V, 1.5V and 1.2V
Separate power consumption (Scaler and CPU)
Package
900-pin BGA, 35mmx35mm (1mm pitch)
