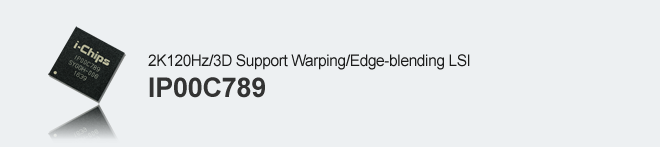

The IP00C789 is an advanced warping and edge-blending chip that supports 120Hz input & output images up to 2K (2048×1200) pixels.

By using its dual-output capability, the IP00C789 can process 3D images for products such as head mount displays (HMD).

Thanks to its embedded warp table generator, the IP00C789 supports frame-by-frame pin-cushion correction as well as keystone correction.

The edge blending function has been greatly improved on this device by making use of a white-peaking algorithm for improved picture quality.

Using only 1 pc of DDR3 memory, the IP00C789 allows for a compact design without compromising on performance.

The IP00C789 is ideal for various kinds of 2K/WUXGA projectors from pico to high end models.

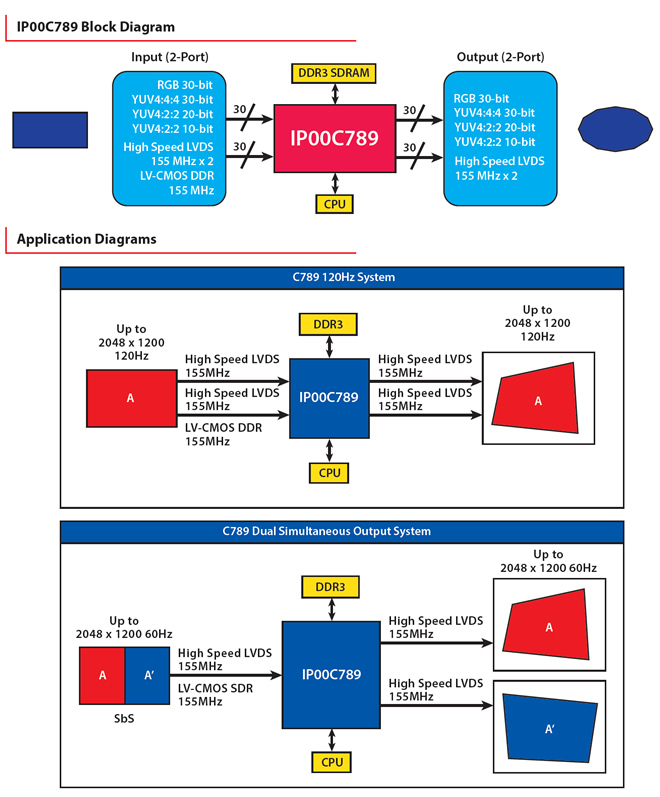

Input(2-port)

• 30-bit RGB/YUV4:4:4, 20-bit YUV4:2:2, 10-bit YUV4:2:2(BT656)@155MHz high speed LVDS x2, 155MHz LV-CMOS DDR

Output(2-port)

• 30-bit RGB/YUV4:4:4, 20-bit YUV4:2:2, 10-bit YUV4:2:2(BT656) @155MHz high speed LVDS x2

Image Size

• Horizontal sync signal 16384 pixels(max), image active area 2048x1200(max)

External/Internal Sync

• Output sync signal is compatible only with internal signal

External Memory

• DDR3-SDRAM 16bit PC1600(4G/2G/1G bit x16)x1

Serial Flash Interface

• 2G-bit x1(max)

Distortion Correction Mode

• RGB common distortion correction mode

Distortion Correction Method

• Coordinate correction look up table(grid 32x32, 16x16<default>, 8x8, 4x4, 2x2, 1x1<only 1x1 mode supporting horizontal up to 1280 in resolution>)

• Embedded warp table generator(keystone correction and pin cushion correction)

• Load from external CPU or external serial flash memory

Distortion Correction Amount

• Up to 45 degrees(horizontal/vertical)

• Vertical shrink ratio is about x0.6(x0.3 in case 60Hz is used)

• Mirror/flip image

• 90 degree rotation/any angle rotation(only available in case 60Hz is used)

Image Correction

• Edge-blending(white peaking supported, by region and per pixel correction)

• Uniformity correction(by region and per pixel correction)

Image Quality Control

• 16-bit color gamma correction tables(3LUT available)

• Error diffusion, brightness and contrast adjustment

3D Function

• Input: A frame sequential or side-by-side

• Output: A frame sequential or dual simutaneous

Interpolation Filter

• Horizontal/vertical 6-symbol programmable FIR filter(10bit/pixel)

Bitmap OSD

• 256 color OSD

• Embedded font engine(65536 words)

• Blinking and semi-transparent(4 colors) OSD

• 90-degree rotation, OSD scroll

• Serial flash to bitmap

CPU Interface

• 4-wire serial

Power Supply

• 3.3V/2.5V/1.5V/1.0V

Package

• 300-pin BGA(0.8mm pitch), 17mmx17mm

IP00C789 demo movie

The following demo movies are available.

If you would like to watch them, please contact info@i-chips.co.jp

IP00C788 RGB Color Independent Real-Time Warping Transition Demo Movie

This is a demo movie that switches color independent correction and warp table every frame.
IP00C788 now supports color independent warping, which was previously supported by the IP00C789.
By switching the warp table stored in the flash memory for each frame, the transformation transition is continuously displayed.
Note: The warp table is generated separately by software and stored in flash memory.

Applicable products:
IP00C788 / IP00C789 /

Image stabilizer demo movie

This is a demo video that realizes the camera shake correction (image stabilizer) function using a warping device.

Applicable products:
IP00C787 / IP00C788 / IP00C789 / IP00C381 / IP00C341 / IP00C382 / IP00C814

New Warping API Demonstration

This new warping API supports HV-Keystone,Pincushion, and Center shift cascade features.

Applicable products: IP00C814 / IP00C382 / IP00C381 / IP00C788 / IP00C789
