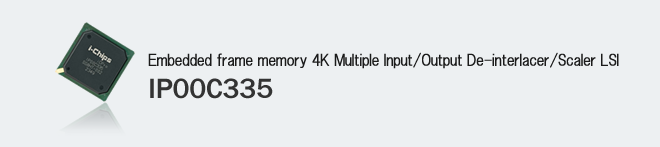

The IP00C335 is an embedded frame memory multi-functional 4K de-interlacer and scaler LSI with high speed serial interface (Tx/Rx of V-by-One®HS).

This chip has 8 internal scalers and 4 internal de-interlacers that provide high speed signal processing (clock of 333MHz each).

It allows to design a one chip solution that can process 4 streams of 4K60Hz.

Features include image overlay (PiP/PoP), independent zooming/shrinking and de-interlacing.

The IP00C335 also supports PQ and Hybrid Log-gamma curves for HDR processing.

Input（4K60Hz 4-port）

• 30-bit RGB/YUV4:4:4/ YUV4:2:0, 20-bit YUV4:2:2

• @V-by-One®HS 4Gbps, 8-lane 4-port

• 4K60Hz input up to 4-port

• 4K120Hz input supported, 8k60Hz input supported

Output （4K60Hz 2-port）

• 30-bit RGB/YUV4:4:4/YUV4:2:0, 20-bit YUV4:2:2

• @V-by-One®HS 4Gbps, 8-lane 2-port

• 4K60Hz dual output (all the time)

• 4K120Hz output supported, 8k60Hz output (YUV420) supported

External Memory

• No need(Embedded with LPDDR3 PC-1600 2Gbit)

Input/Output sync/ Asynchronous Behavior

• Frame rate conversion, Tearing protection

• External force synchronization, Genlock

De-interlacer

• Motion adaptive de-interlacer

• High performance motion detection filter(Y, U, V)

• Multi-cadences, Low latency processing(4-port)

Scaler

• Zoom/shrink: 6-symbol, 10bit/pixel

• Coefficient ROM (64set)

• 333Mpix/sec 8-ch, support 4K60Hz 4-image processing

Image Manipulation

• Mirror/flip/90-degree rotation

• Overlay, alpha blending

• Chroma key blending

Image Quality Control

• Full color gamma

• 3DLUT (4K60Hz x2 input supported)

• Uniformity correction (by region & per-pixel)

• Bias/Gain/Gamma correction

• H edge enhancement (9-symbol)

• V edge enhancement (5 or 9-symbol)

• Spatial enhancement

• Error diffusion(12→10),(10→8)

Bt.2020

• Fully supported

HDR standard

• SMPTE ST2084(PQ HDR10) and HLG methods supported (RGB 10-bit each)

Noise reduction

• 3DNR (H, V, Temporal), MPEG-NR(Mosquito/Block)

• Chroma error filter

Bitmap OSD

• 256 colors/High color OSD (64K colors)

• Blinking & semi-transparent (4 colors OSD)

• 90-degree rotation

• OSD scroll

CPU　Interface

• 8-bit parallel/4-wire serial

Power Supply

• 3.3V/1.8V/1.2V/1.1V

Package

• 593-pin, BGA (0.8mm pitch)，27mmx27mm

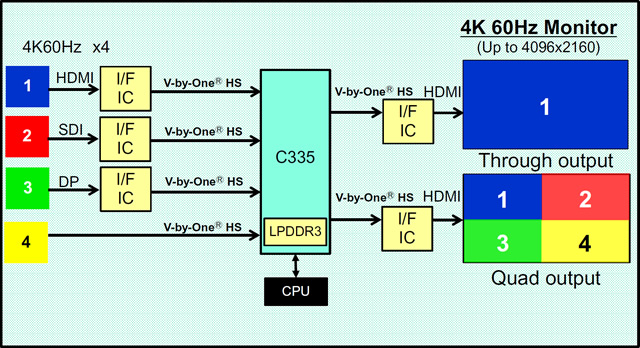

IP00C335 4K60Hz Quad Input System
